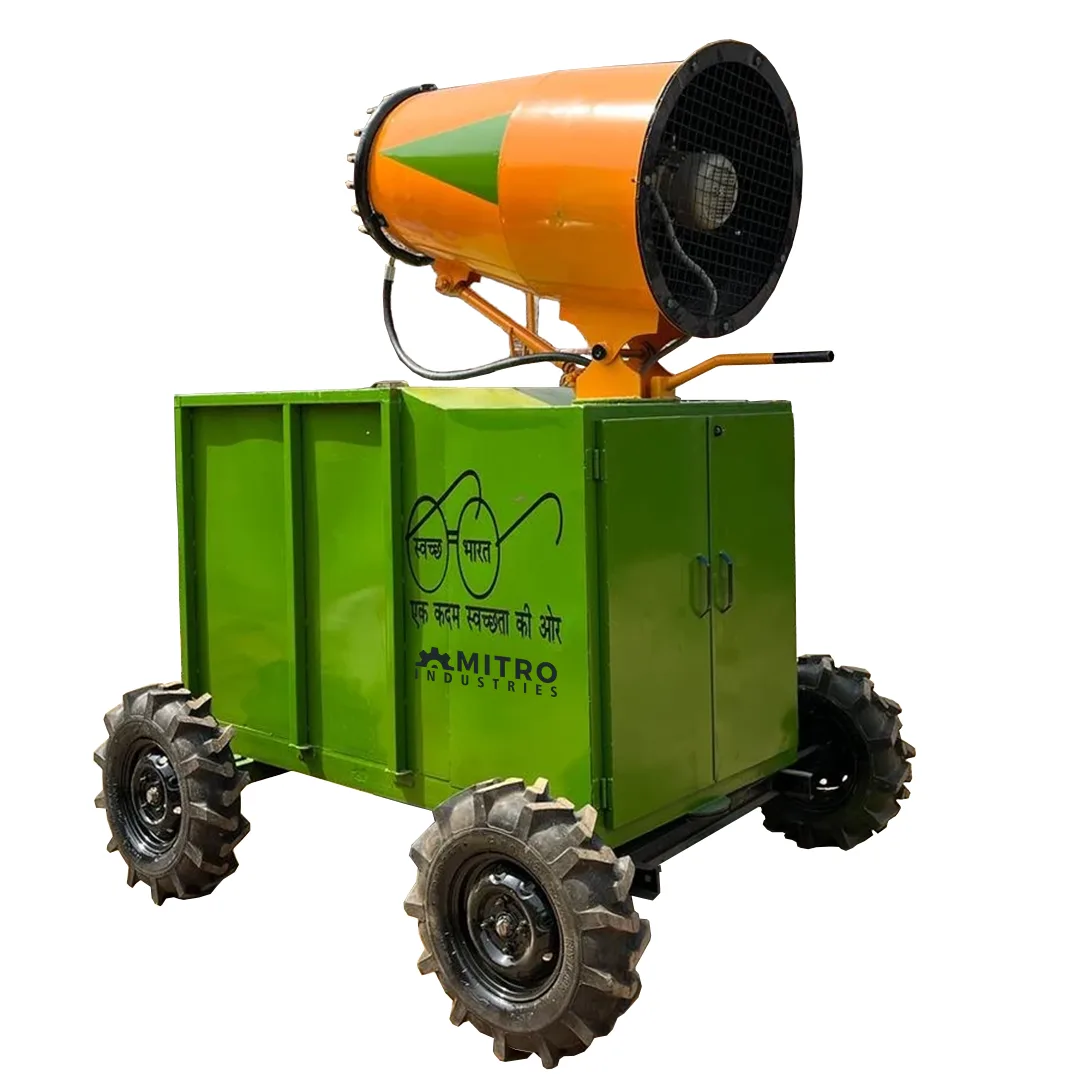

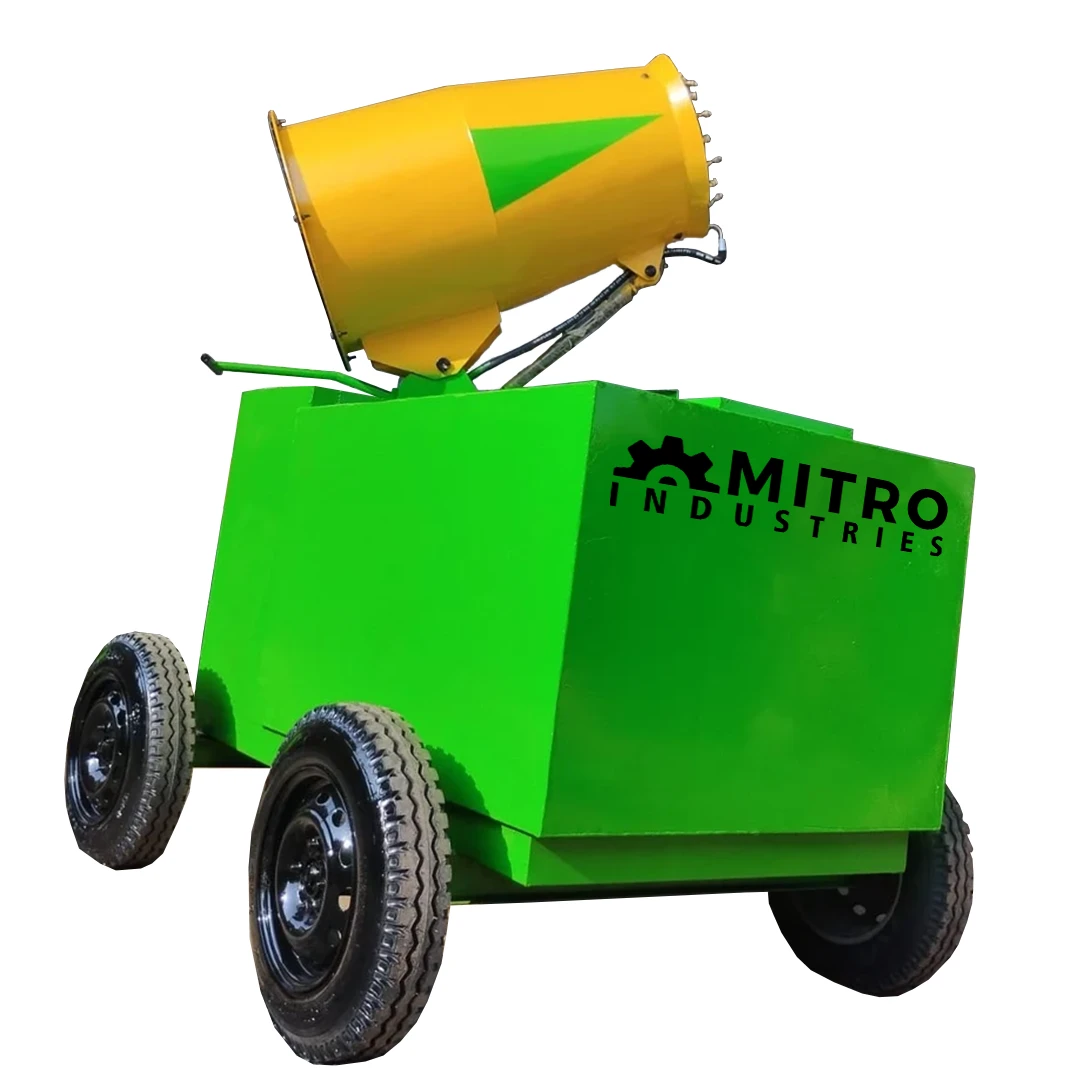

Mitro Industries introduces the Anti Smog Gun, a highly effective solution designed to control dust and pollution at construction sites. View Complete Details...

GET QUOTE

REQUEST A CALL BACK

Product Specification

This state-of-the-art machine uses advanced technology to suppress airborne dust particles, ensuring a safer and cleaner working environment.


Features

• High-Efficiency Dust Suppression - The Anti-Smog Gun uses a fine mist of water to capture dust and particulate matter, preventing them from becoming airborne. This reduces the harmful effects of dust exposure on workers and the surrounding environment.


• Large Coverage Area - With its powerful jet spray and adjustable settings, it can cover vast areas efficiently, ensuring that even large construction zones are effectively managed.


• Eco-Friendly Operation - The gun uses minimal water and energy while delivering maximum performance, making it an environmentally friendly choice for controlling pollution.


• Easy to Operate - Designed for ease of use, the Anti-Smog Gun features user-friendly controls, allowing operators to quickly adjust spray intensity and coverage area to meet specific site requirements.


• Durable & Robust - Built with heavy-duty materials, it’s engineered to withstand the harsh conditions of construction sites, ensuring long-lasting performance and reliability.


• Improved Air Quality - By controlling airborne dust, it helps improve the air quality for workers, reducing respiratory hazards and promoting a healthier workplace.



Benefits

• Compliance with Environmental Regulations - Helps meet local air quality standards and regulations, reducing fines and improving your site’s reputation.


• Enhanced Worker Safety - Reduces health risks associated with dust inhalation, including respiratory issues, ensuring a safer environment for workers.


• Cost-Effective - Minimizes the need for expensive cleaning measures or dust-related health claims, saving on long-term operational costs.


• Time-Saving - Quickly deployable across large sites, reducing the amount of time spent on dust management tasks.



Specification

Sr. No.ParticularMI-ASG01MI-ASG02
1UsageControl Air PollutionControl Air Pollution
2MovingManualManual
3MountedUCP Bearing for Heavy StructureUCP Bearing for Heavy Structure
4Fan Diameter24 inches28 inches
5Water Pump Motor2 Hp3 Hp
6Fan Motor5 Hp10 Hp
7No. of Spray Nozzles18 Nos26 Nos
8No. of Fan Blades8-10 Nos8-10 Nos
9Horizontal Rotation340 Degree340 Degree
10Vertical Rotation75-80 Degree75-80 Degree
11Blower Capacity3000 m3/hr3000 m3/hr
12Auto RotateIf RequiredIf Required
13Pump Warranty1 Year1 Year
14Volume Flow25-30 Ltr/Min25-30 Ltr/Min
15Water Tank1000 Ltr1000 Ltr
16Frame Angle50*5 mm50*5 mm
17Frame Sheet14 Gauge14 Gauge
18Drum Sheet2-2.5 mm2-2.5 mm
19Elevation Angle10 degree - 60 degree10 degree - 60 degree
20Blower RPM28002800
21Protection Level65 IP65 IP
22Isolation ValvesBall & Globe ValveBall & Globe Valve
23Pump LocationUnder FogUnder Fog
24Pump Specification2.5 m3 - 8 bar2.5 m3 - 8 bar
25Water Storage TankIn-Build (Trolley)In-Build (Trolley)
26MaterialMS SteelMS Steel
27Spray Water RingSingle RingsSingle Rings
28Material Of Water RingSS 304SS 304
29Power Supply415 Volts (3 Phase)415 Volts (3 Phase)
30Equipment TypePortablePortable
31Operational SystemControl PanelControl Panel
32Movable TireAs per requirementAs per requirement
33Nozzle SpecificationHollow Cone 2-3 LPMHollow Cone 2-3 LPM
34Particle Size20-150 Micron20-150 Micron
35Nozzle MaterialBrassBrass
36HoseSynthetic RubberSynthetic Rubber



The Anti-Smog Gun by Mitro Industries is a sophisticated dust suppression system designed to reduce airborne dust and pollution at construction sites. Here’s how it works

1. Water Filtration and Pumping - The Anti-Smog Gun is connected to a water supply, which feeds into an integrated filtration system. The filtration ensures that the water is clean and free of debris before it is used for dust suppression. A high-efficiency pump then pushes the filtered water through the system.

2. Mist Creation - The water is then directed through high-pressure nozzles that atomize the water into fine droplets. These small droplets, when sprayed into the air, form a mist that is highly effective at capturing dust particles in the surrounding environment.

3. Dust Particle Capture - As the mist is sprayed, the water droplets come into contact with airborne dust particles, binding to them and causing them to fall to the ground. This process effectively reduces the amount of suspended dust in the air, preventing it from drifting off-site or affecting workers and nearby communities.

4. Adjustable Spray Settings - The Anti-Smog Gun features adjustable spray settings that allow operators to control the intensity and range of the mist. This ensures that the machine can be optimized for different site conditions, such as varying levels of dust or the size of the area to be covered.

5. Wide Coverage Area - The mist is propelled at a high velocity by a powerful fan, allowing the Anti-Smog Gun to cover large construction zones. The fan's rotation and nozzle angle can be adjusted to ensure even distribution of the mist over a broad area.

6. Continuous Operation - The system can be run continuously for extended periods, ensuring ongoing dust suppression throughout the workday. It can be easily deployed at different points across the site, depending on where dust control is most needed.


Through this combination of misting technology, adjustable settings, and continuous operation, the Anti-Smog Gun offers an efficient and reliable solution to control dust and reduce pollution on construction sites.


The Anti-Smog Gun by Mitro Industries is a vital tool for any construction site looking to minimize its environmental impact while prioritizing worker health and safety. Invest in dust suppression today and create a cleaner, healthier construction site!
