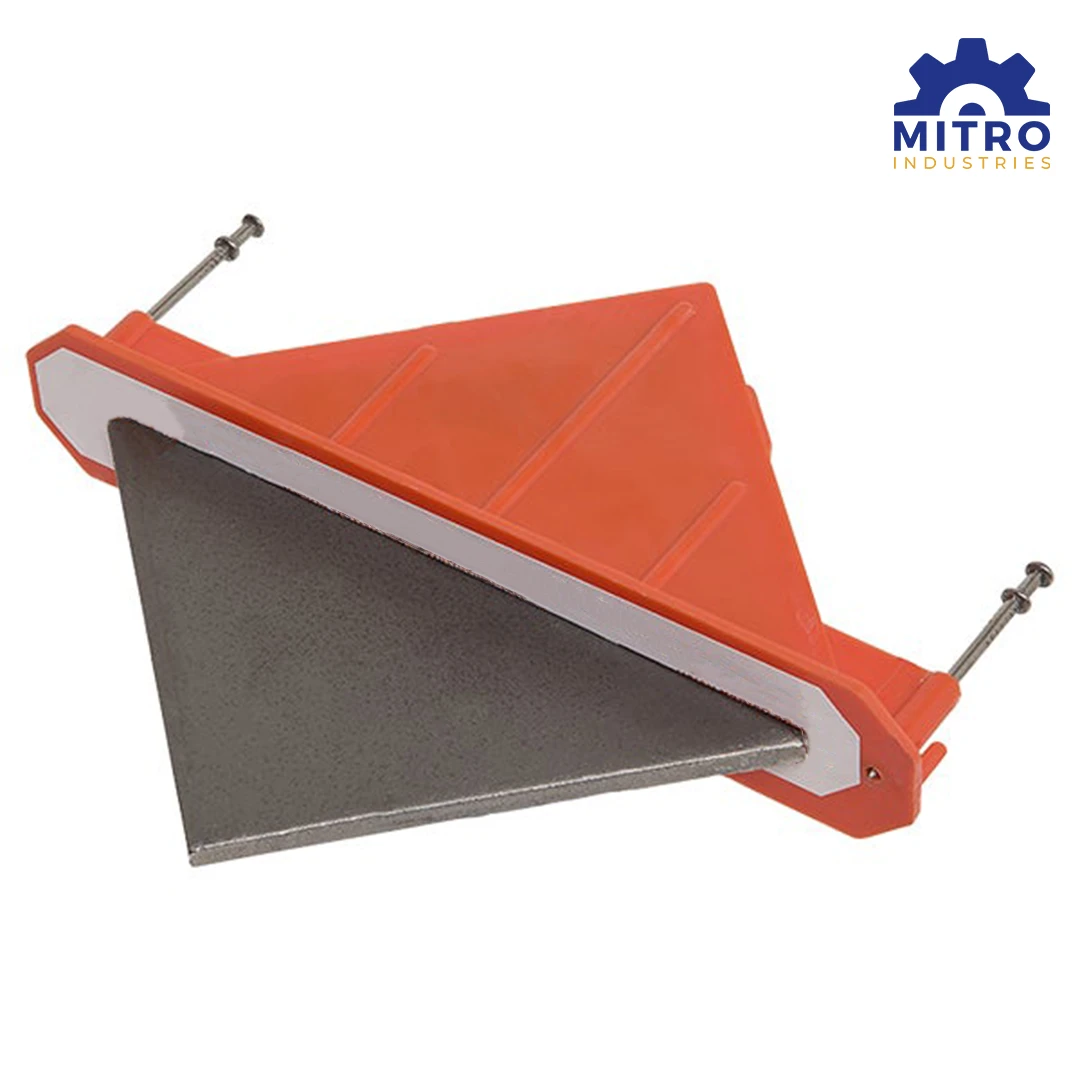

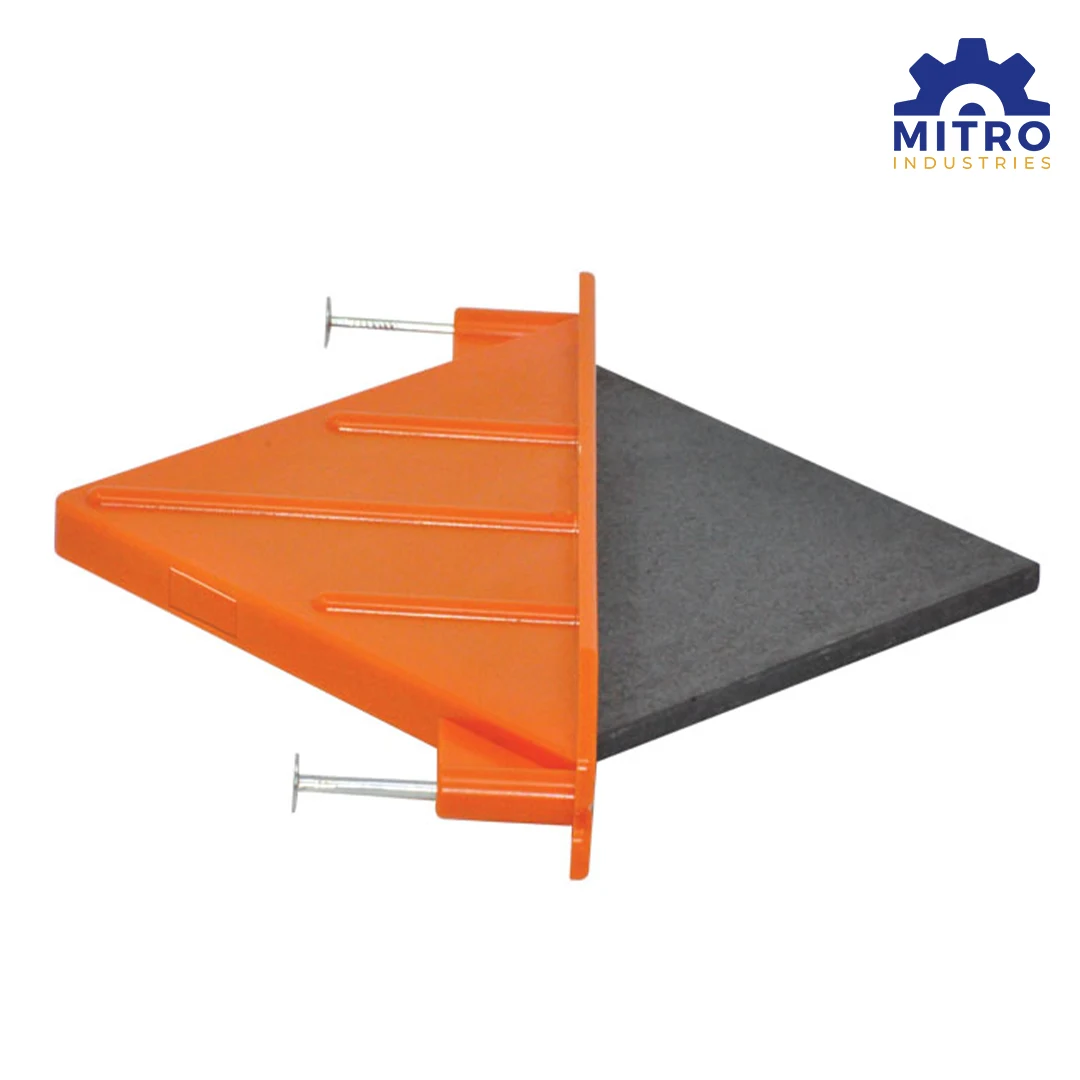

Diamond Dowel Sleeve and Plate
Diamond™ Dowels feature a plate dowel and sleeve system specifically engineered for construction joint applications in concrete slabs and pavements. View Complete Details...
Product Specification
Diamond™ Dowels are designed for use in construction joints within concrete slabs and pavements. These plate dowels efficiently transfer vertical loads through the joint, reducing differential deflection between neighboring slab panels when under load. Simple to install, they easily attach to wooden form boards or metal separation plates. Each package includes all necessary components for quick and convenient installation.
Diamond Dowel Sleeve and Plate Specification
| Material | ABS Sleeve & MS Plate |
| Dimension | 110*110 mm |
| Thickness of Plate | 6mm, 8mm, 10mm |
| Steel Grade | MS |
| Application | For Heavy Duty Flooring (Suitable for ground bearing slabs.) |
| Total Weight | 635 gram (Both Sleeve and Plate) |
| Shape | Diamond & Square(Speed Dowel) |

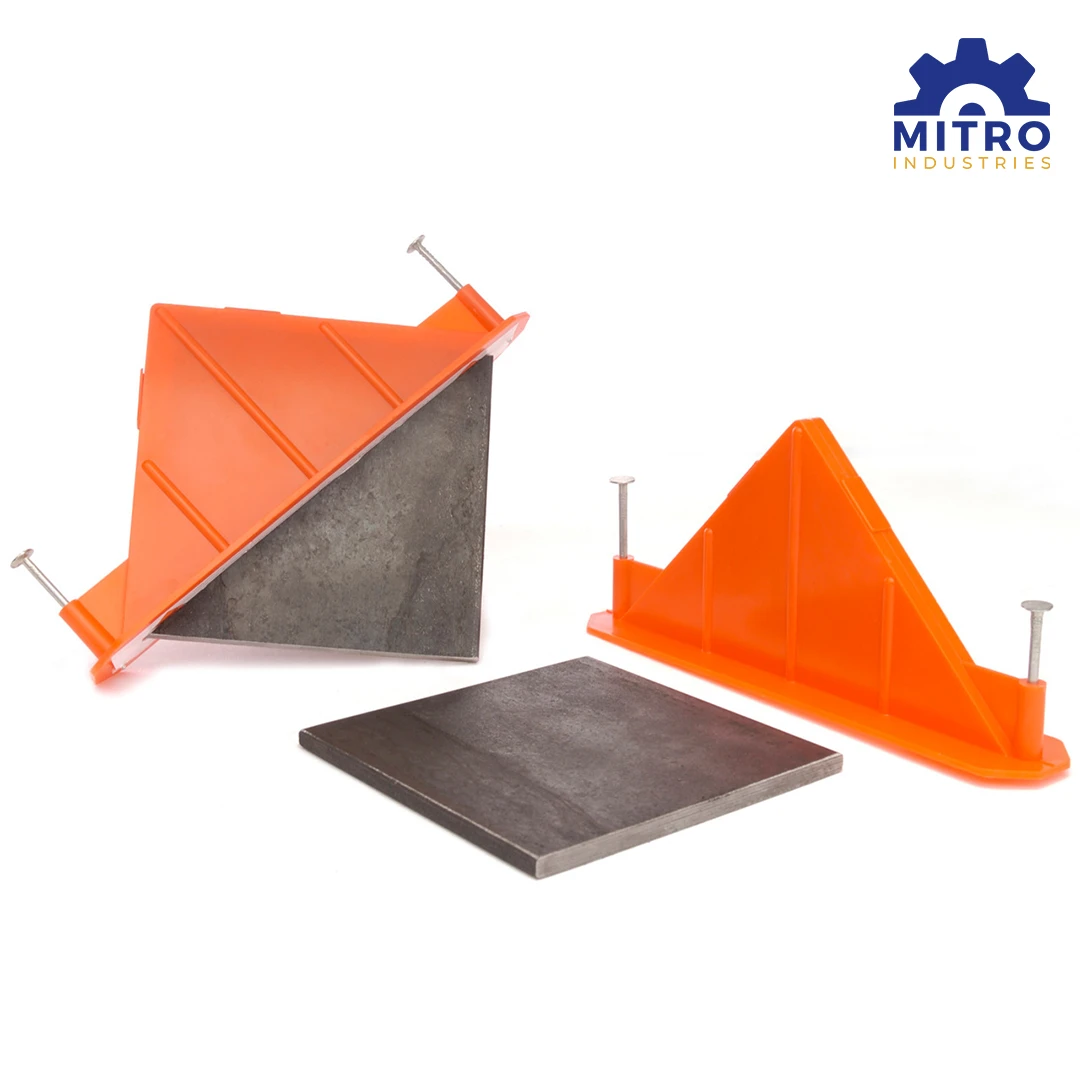

Diamond Dowels are highly favored for their quick, easy, and cost-effective installation. Specifically designed for slabs on the ground, they eliminate the need for drilling holes in timber formwork. Simply attach the dowel sleeve to the formwork on the first side, pour the concrete, remove the formwork, and then insert the dowel plates into the sleeves before pouring the second side.
Benefits
• Durable, efficient load transfer.

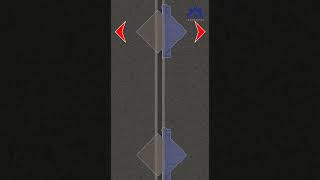

• Allows horizontal slab movement in two directions.
• Does not permit vertical slab movement.
• Quick and easy to install – no need to drill timber formwork.
• Safe on site, as there are no protruding dowel plates during the pour.
• Minimal chance of damage to the dowel plates on site, as they are installed just prior to the second pour.
The Diamond Dowel System sets the industry standard for construction joints, providing exceptional joint stability with measurements of 0.01 in (25 mm). It ensures long-lasting, maintenance-free, and durable concrete flatwork. With this proven system, you can maximize material efficiency, lower labor costs, enhance worker safety, and reduce the risk of joint spalling and random cracking.
Useful for construction joints in
• Concrete slabs on grade
• Concrete pavement
• Concrete flatwork exposed to pedestrian traffic
The Diamond Dowel System offers the joint stability, reliable load transfer, and consistent surface profile that projects require. It includes the tapered plate dowel, pocket former, and installation template. The tapered plates in the Diamond Dowel System come in three different sizes to suit various project needs.
• 110mm * 110mm * 6mm
• 110mm * 110mm * 8mm
• 110mm * 110mm * 10mm
