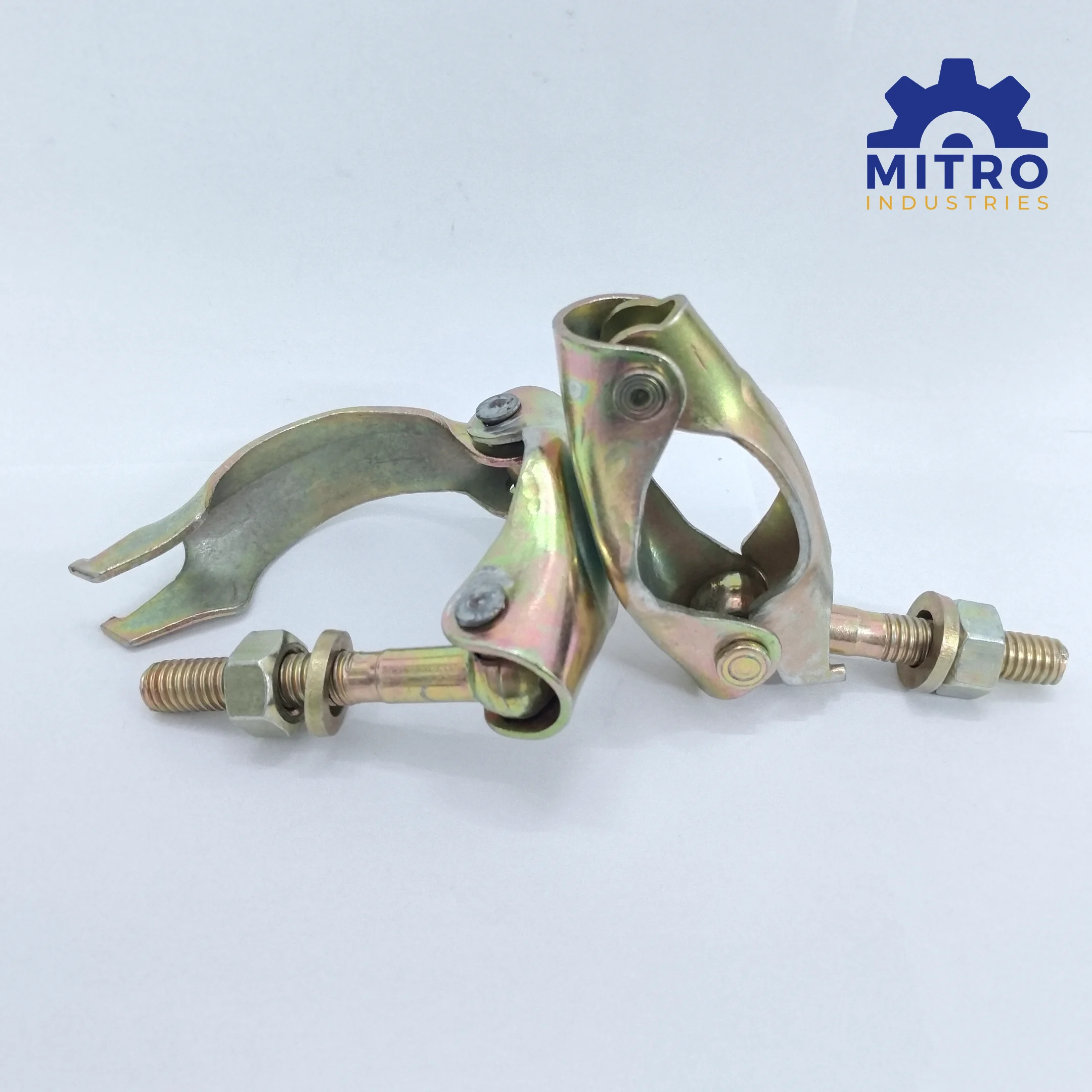

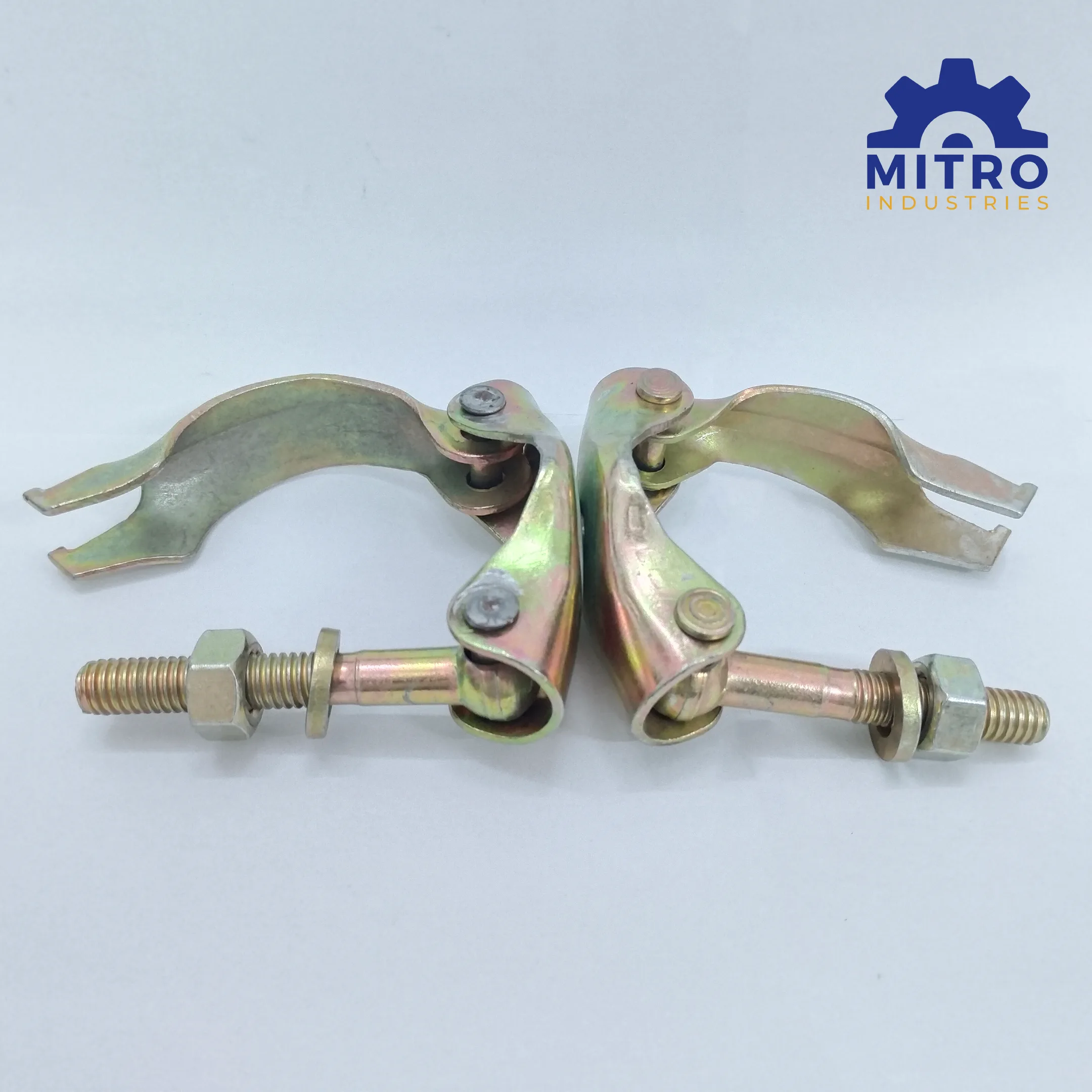

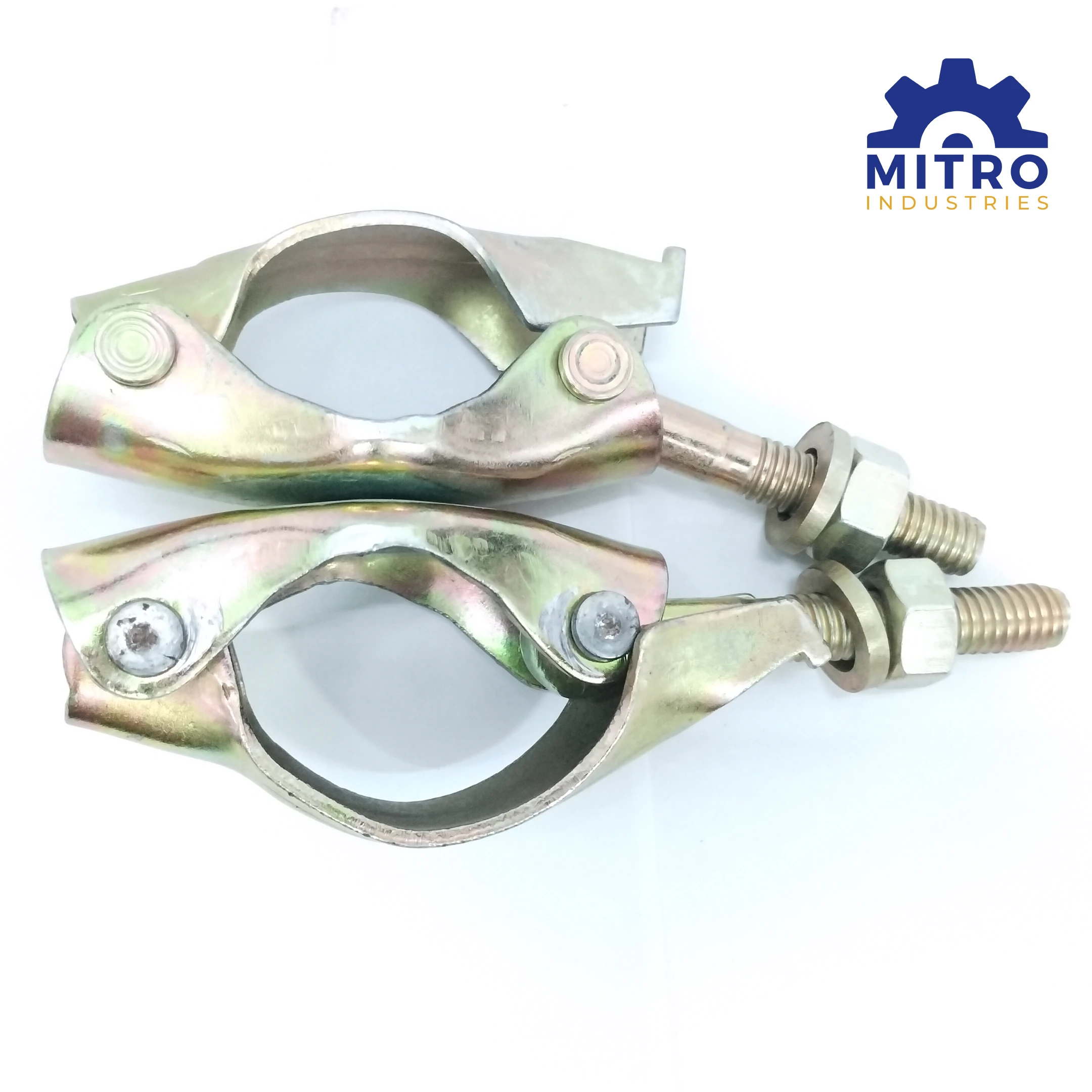

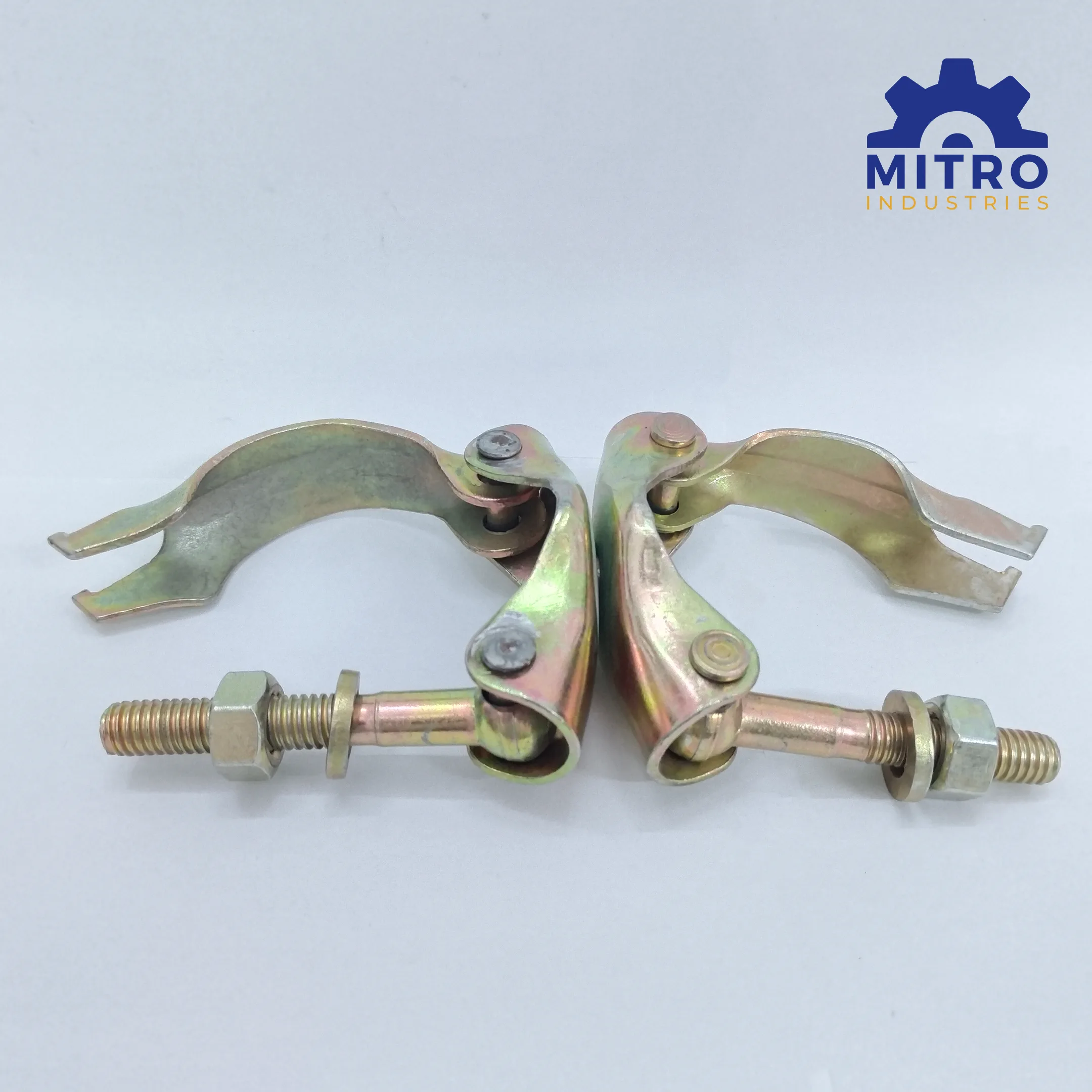

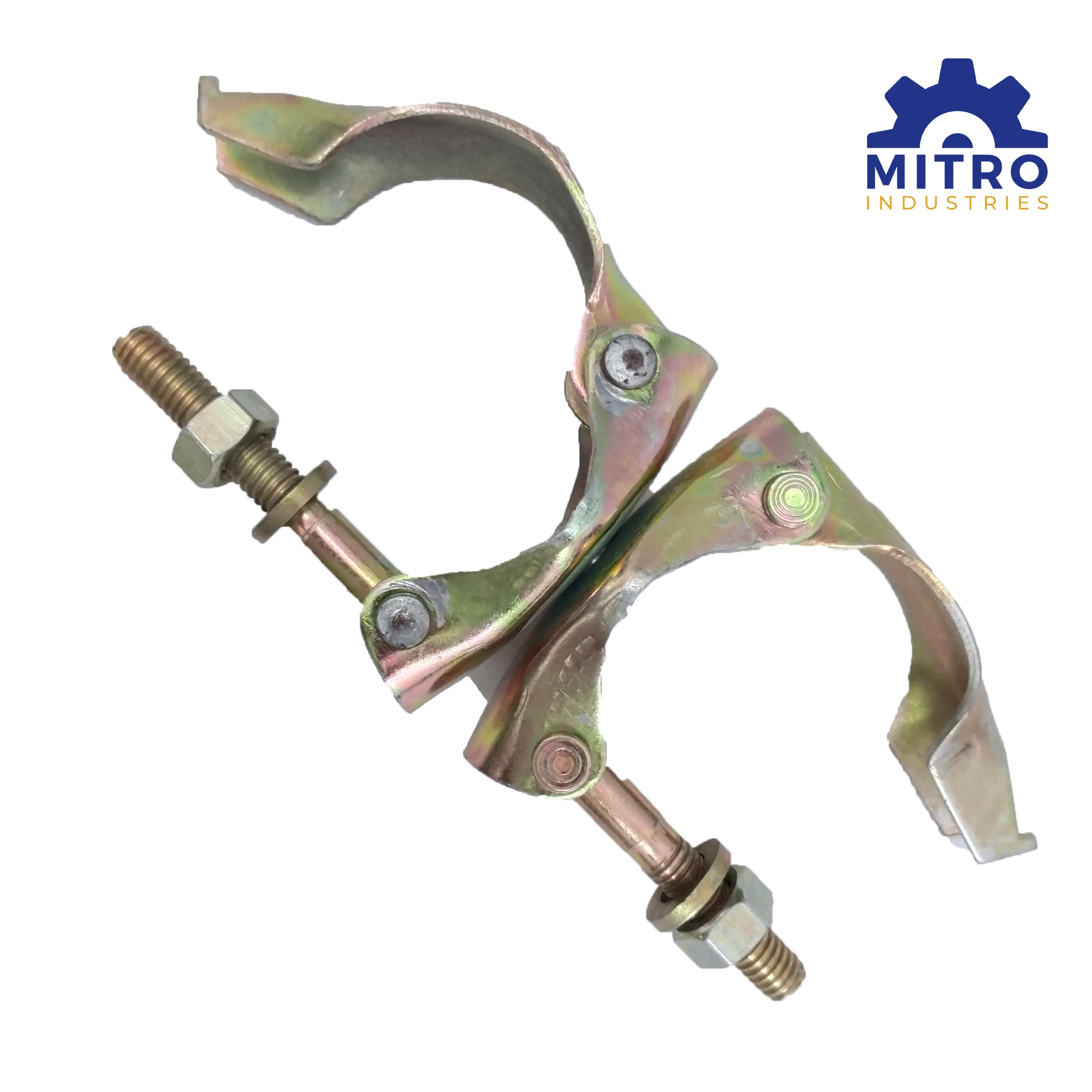

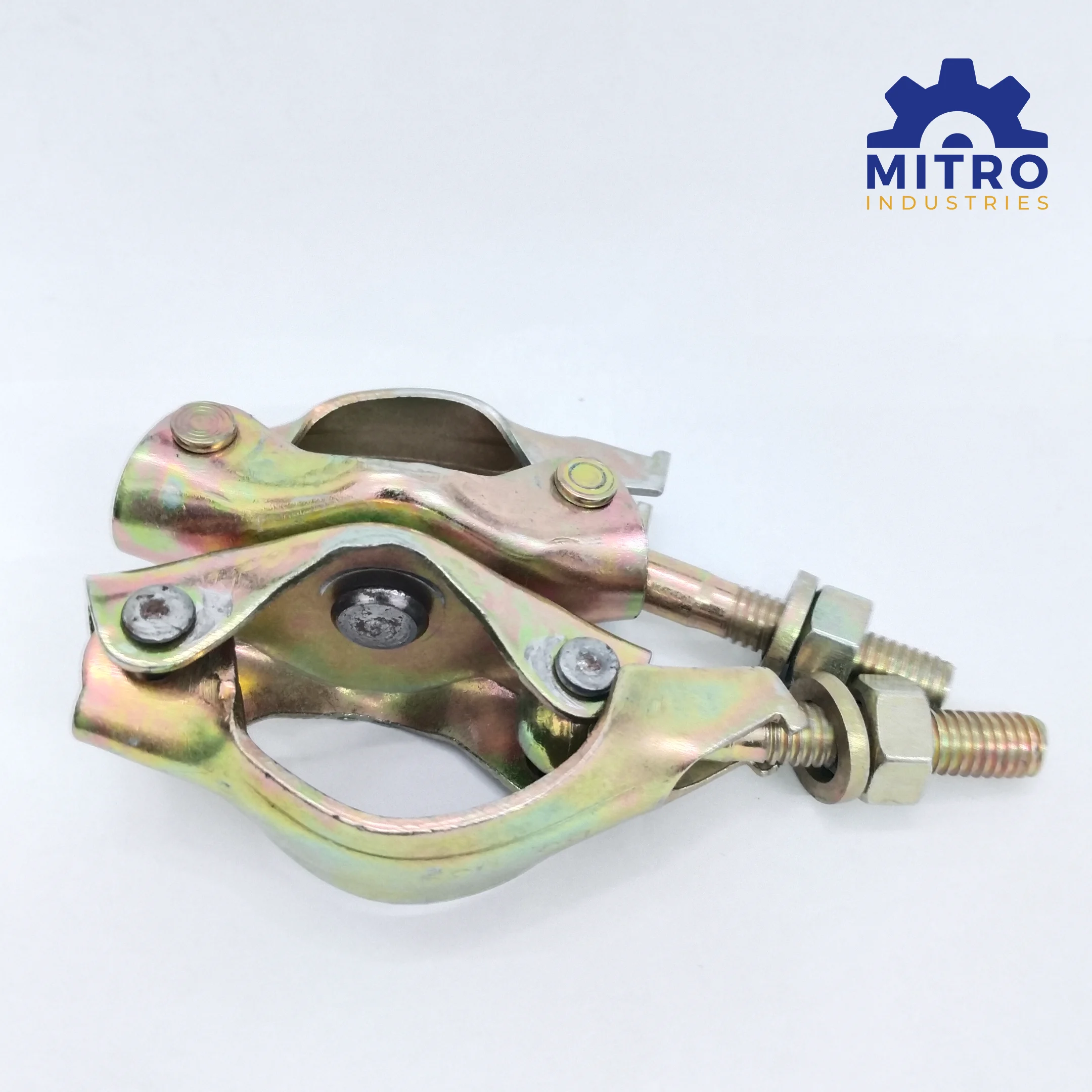

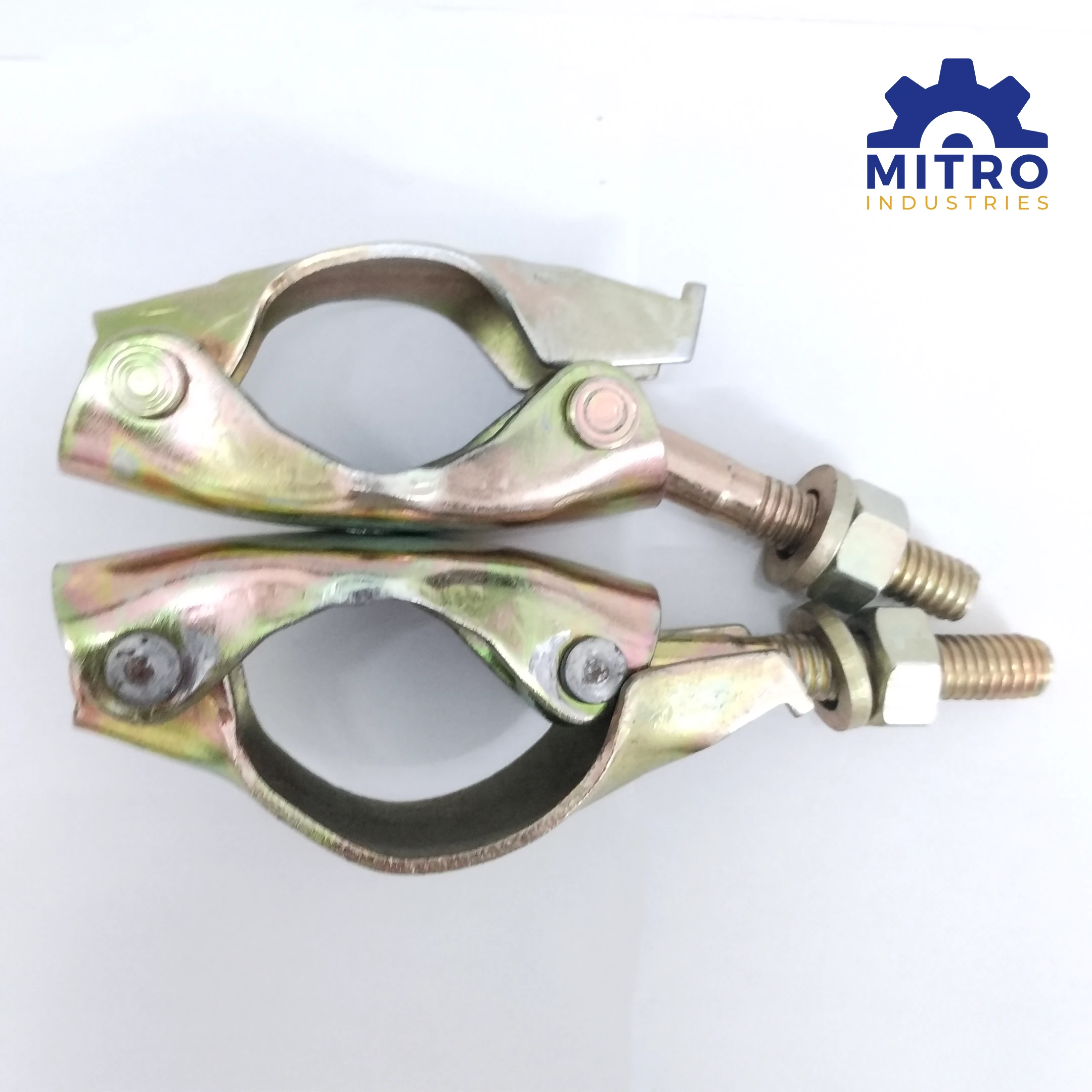

MS Swivel Coupler
The MS Swivel Coupler is a high-strength scaffolding accessory made from mild steel, designed to connect two tubes at any angle. View Complete Details...
Product Specification
In the construction industry, formwork systems are essential for shaping concrete structures efficiently and safely. Among the various components of formwork accessories, the MS Swivel Coupler plays a key role in connecting scaffolding tubes at various angles, making it an indispensable fitting in complex scaffolding and formwork arrangements.
What is an MS Swivel Coupler?
An MS Swivel Coupler (Mild Steel Swivel Coupler) is a scaffolding clamp designed to connect two steel tubes at any angle, typically used when the standard 90-degree or fixed connections are not suitable. These couplers consist of two parts joined by a central swivel pin, allowing them to rotate and adapt to different angles.
Key Features
• Material : Made from high-quality mild steel for strength and durability.
• Swiveling Mechanism : Allows full 360-degree rotation for flexible angular positioning.
• Finish : Usually hot-dip galvanized or zinc-plated to resist corrosion.
• Load Bearing : Designed to handle the structural loads imposed by formwork and scaffolding systems.
• Compatibility : Fits standard 48.3 mm diameter scaffolding tubes (common in most construction sites).
Applications in Formwork and Construction
• Angular Connections : MS swivel couplers are ideal for bracing and diagonal support members where angled joints are required.
• Temporary Scaffolding : They help in assembling scaffolding in irregular shapes or around curved or sloped surfaces.
• Formwork Supports : Used to connect formwork frames and props that need flexible positioning to maintain structural alignment.
• Bridge and Sloped Structure Works : Suitable for constructing inclined or non-linear surfaces in bridge formwork or sloped facades.
Advantages
• Versatility : One of the most flexible couplers used in scaffolding and formwork setups.
• Easy Installation : Quick to fix using basic hand tools like a spanner.
• Reusability : Can be reused multiple times, reducing long-term construction costs.
• Improved Safety : Ensures secure and stable connections, crucial for worker safety on scaffolds.
Compliance and Standards
Reputable manufacturers ensure that MS swivel couplers comply with international standards such as
• BS EN 74-1
• IS 2750 (Indian Standard for couplers and scaffold fittings)
The MS Swivel Coupler is a vital component in modern construction, especially in complex or custom formwork systems. Its ability to provide secure and adjustable connections makes it a go-to accessory for engineers and contractors who prioritize both flexibility and structural integrity. Investing in high-quality swivel couplers ensures the efficiency, safety, and durability of scaffolding and formwork structures on site.
