Dust Suppression System
Anti Smog Gun is an advanced solution for dust suppression and designed to effectively control airborne dust and reduce pollution on construction sites. View Complete Details...
Product Specification

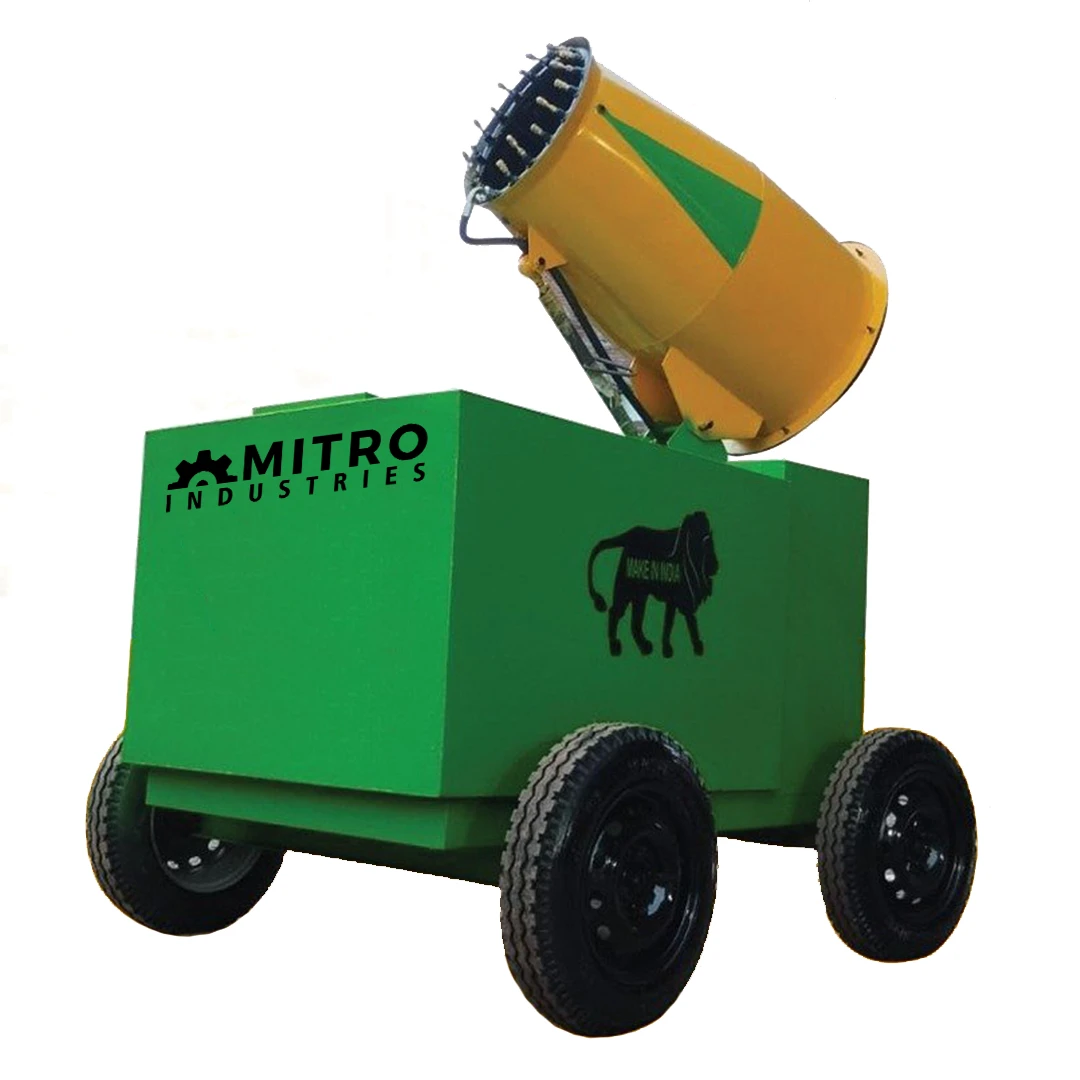

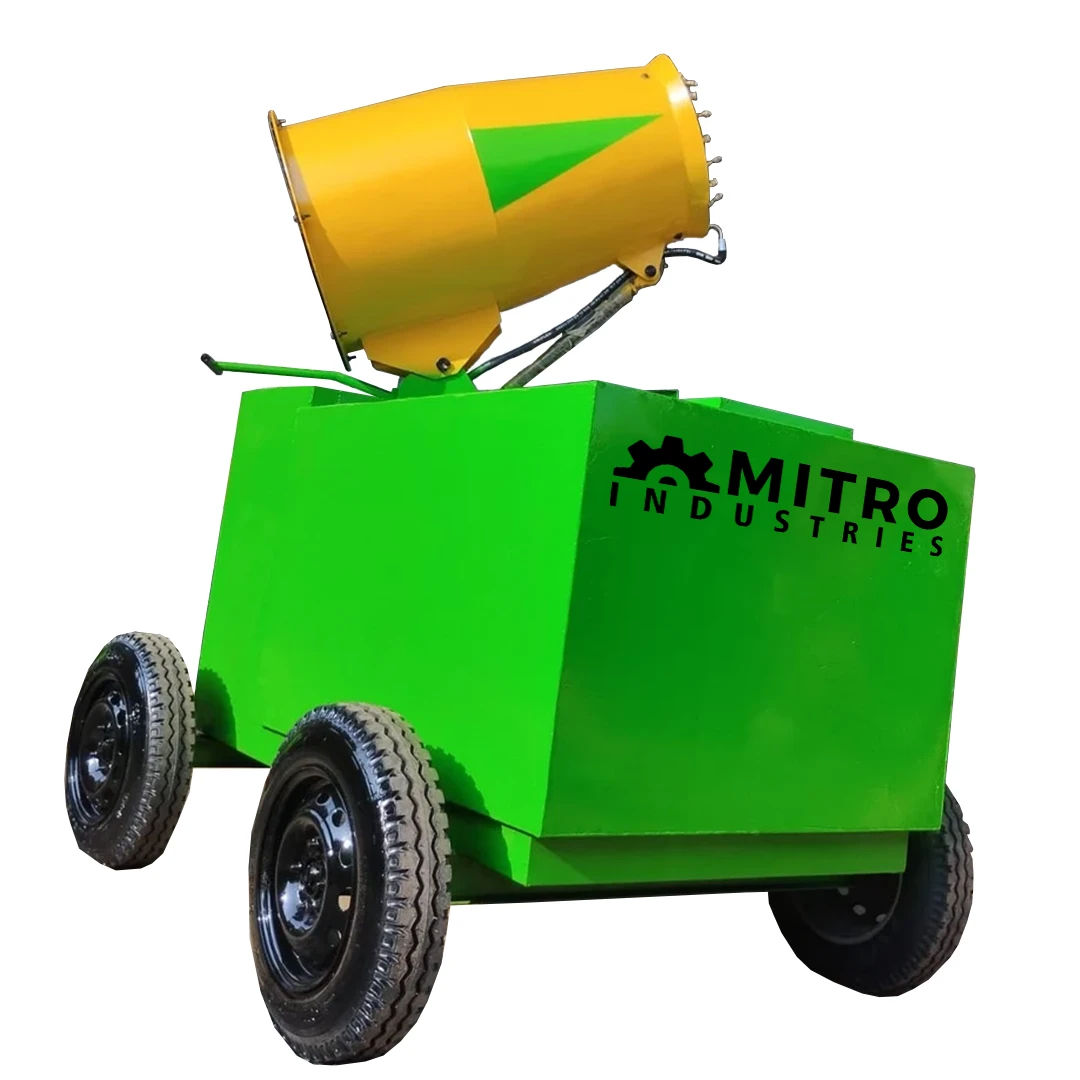

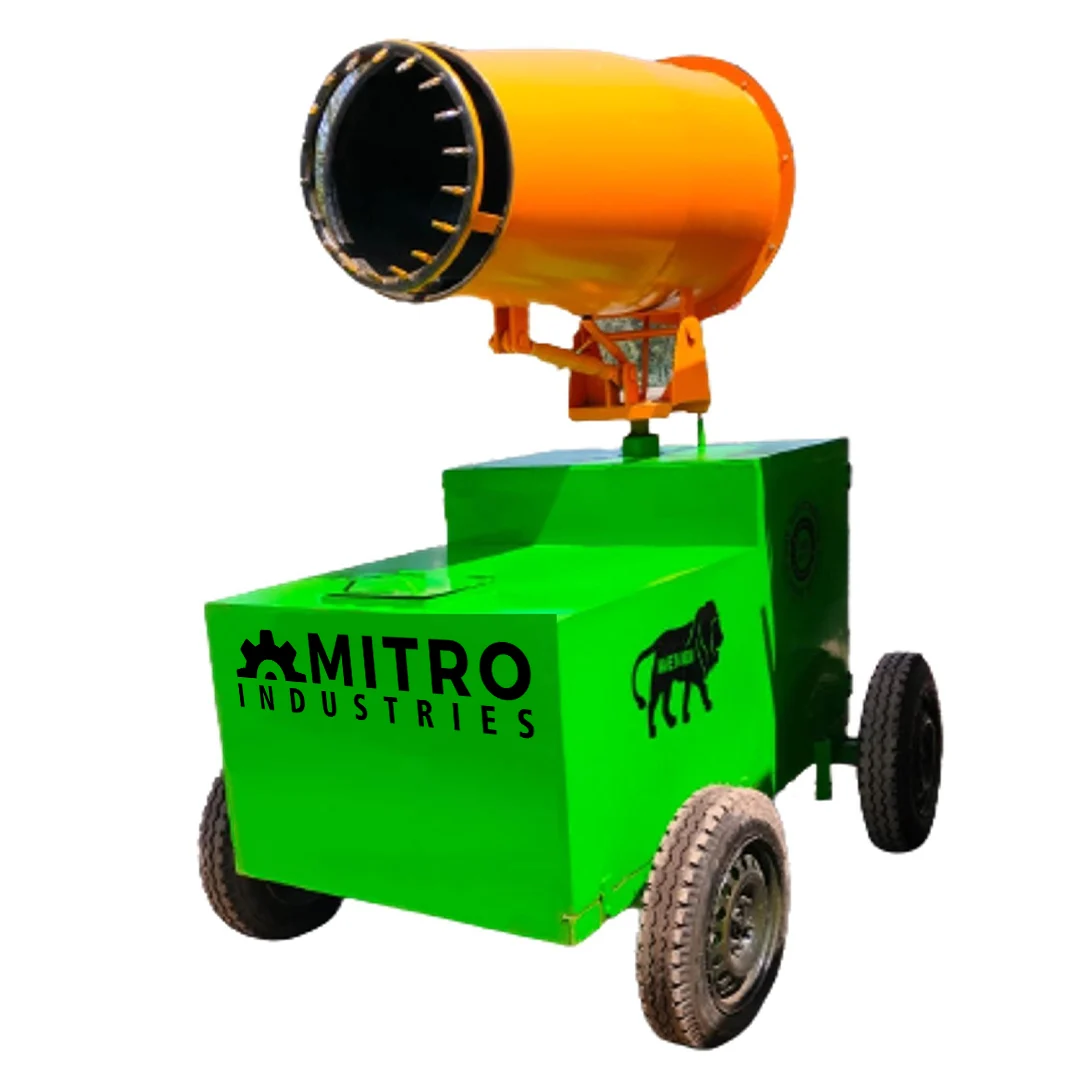

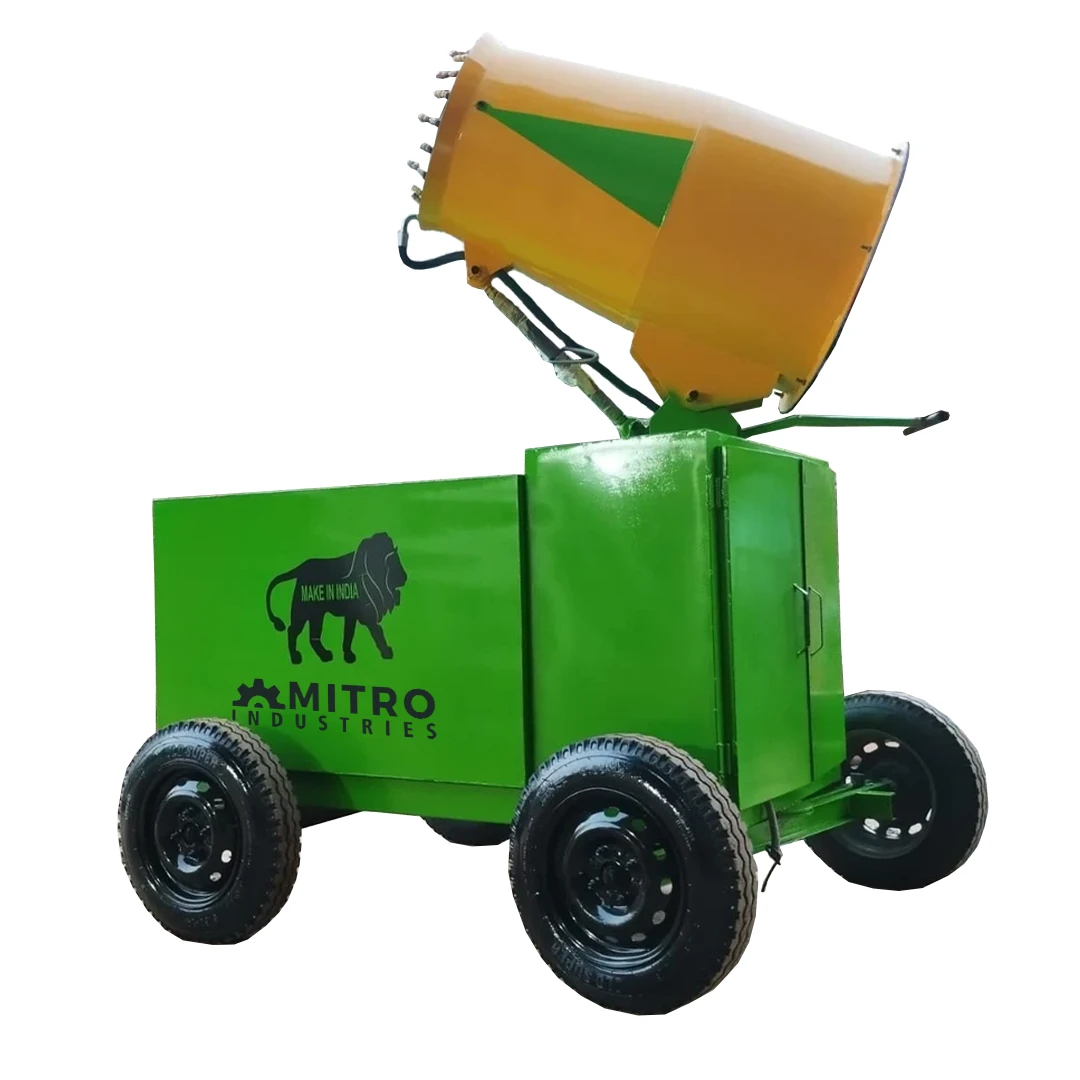

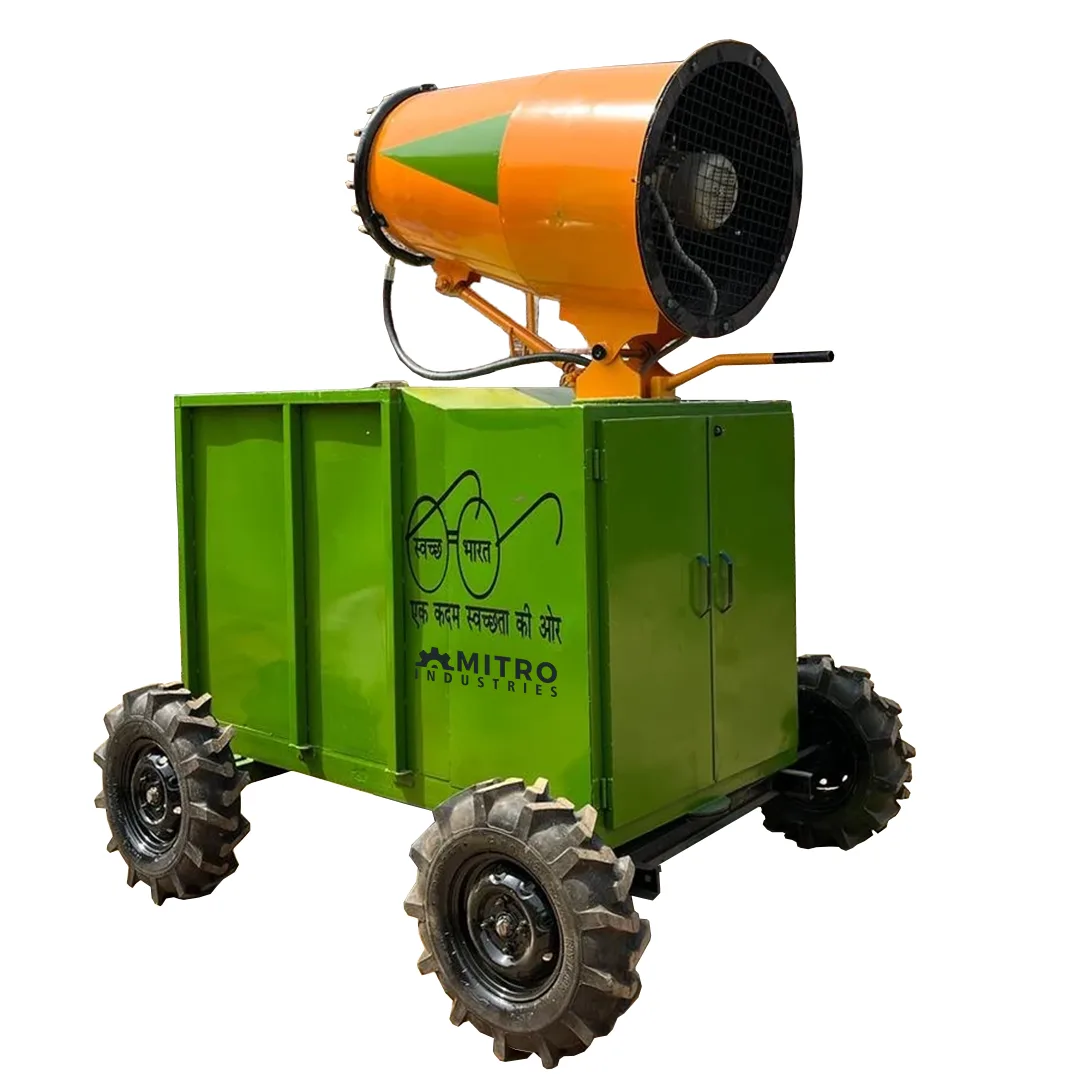

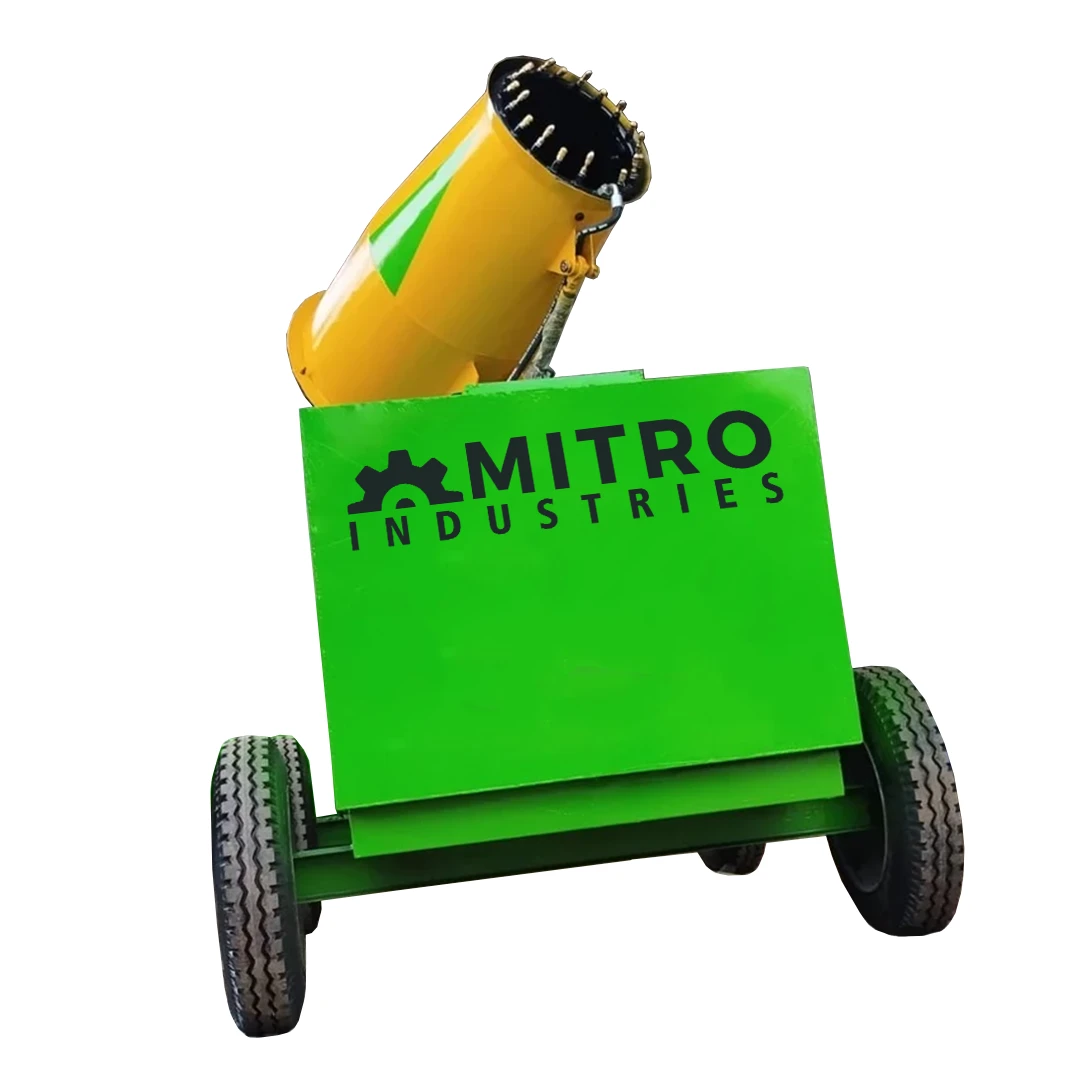

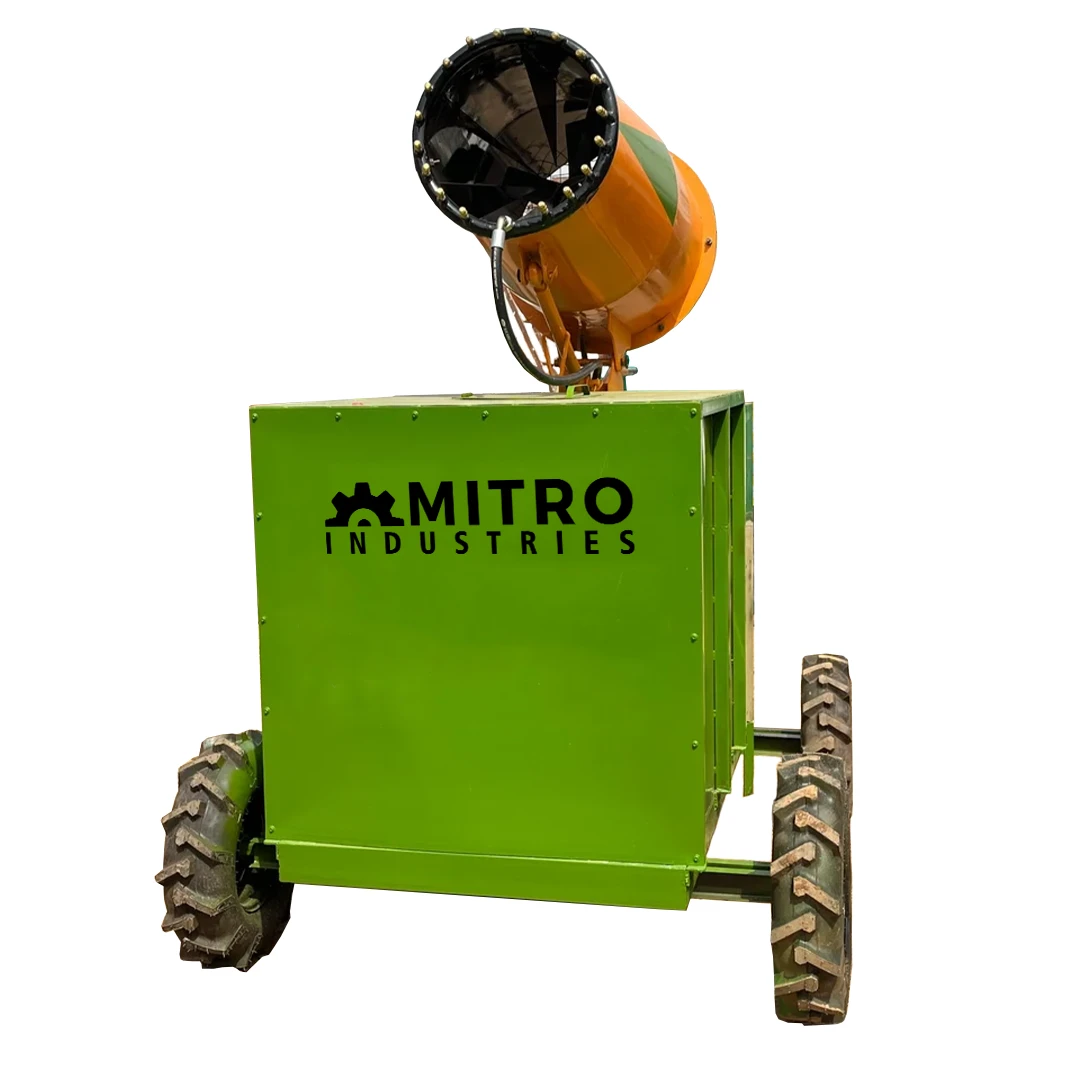

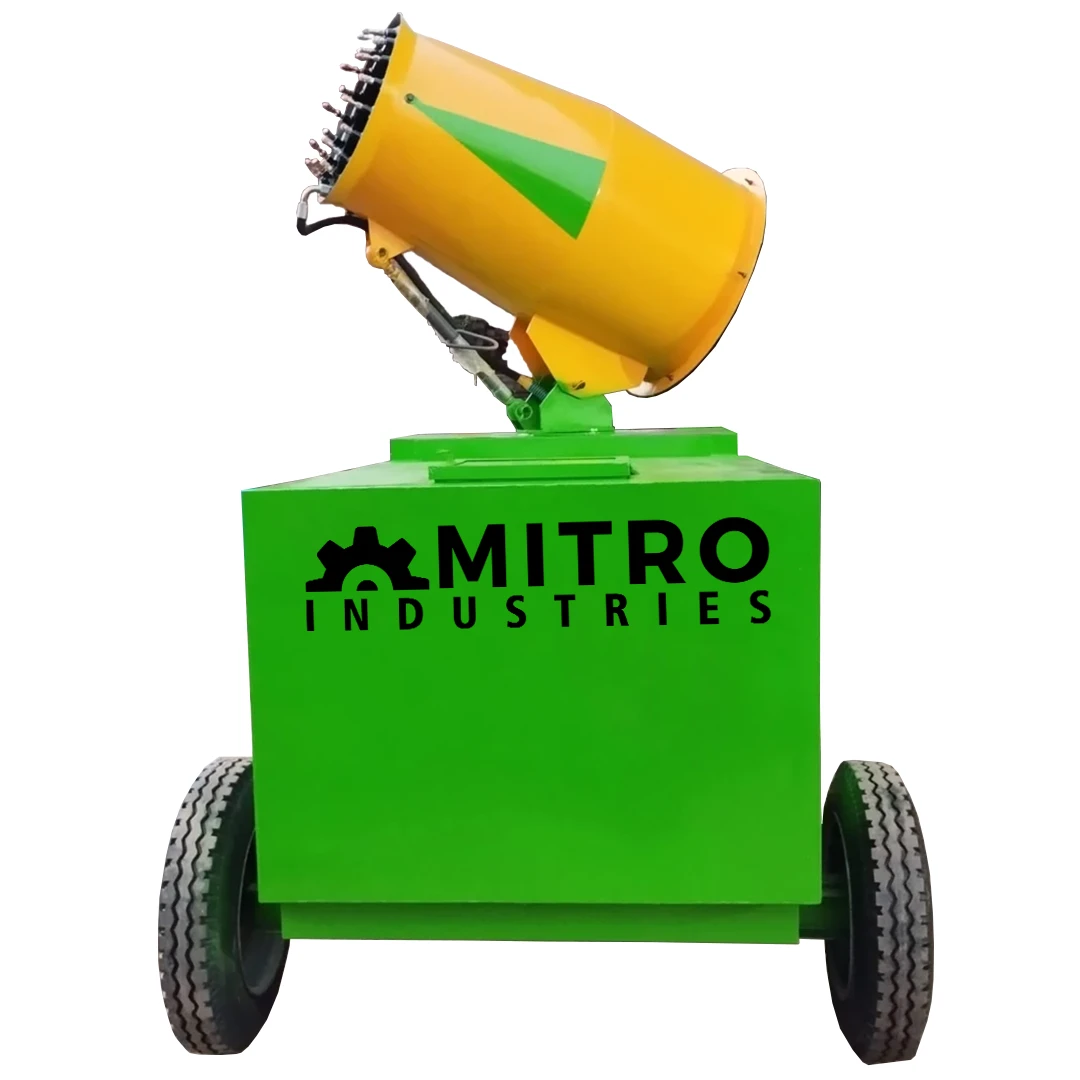

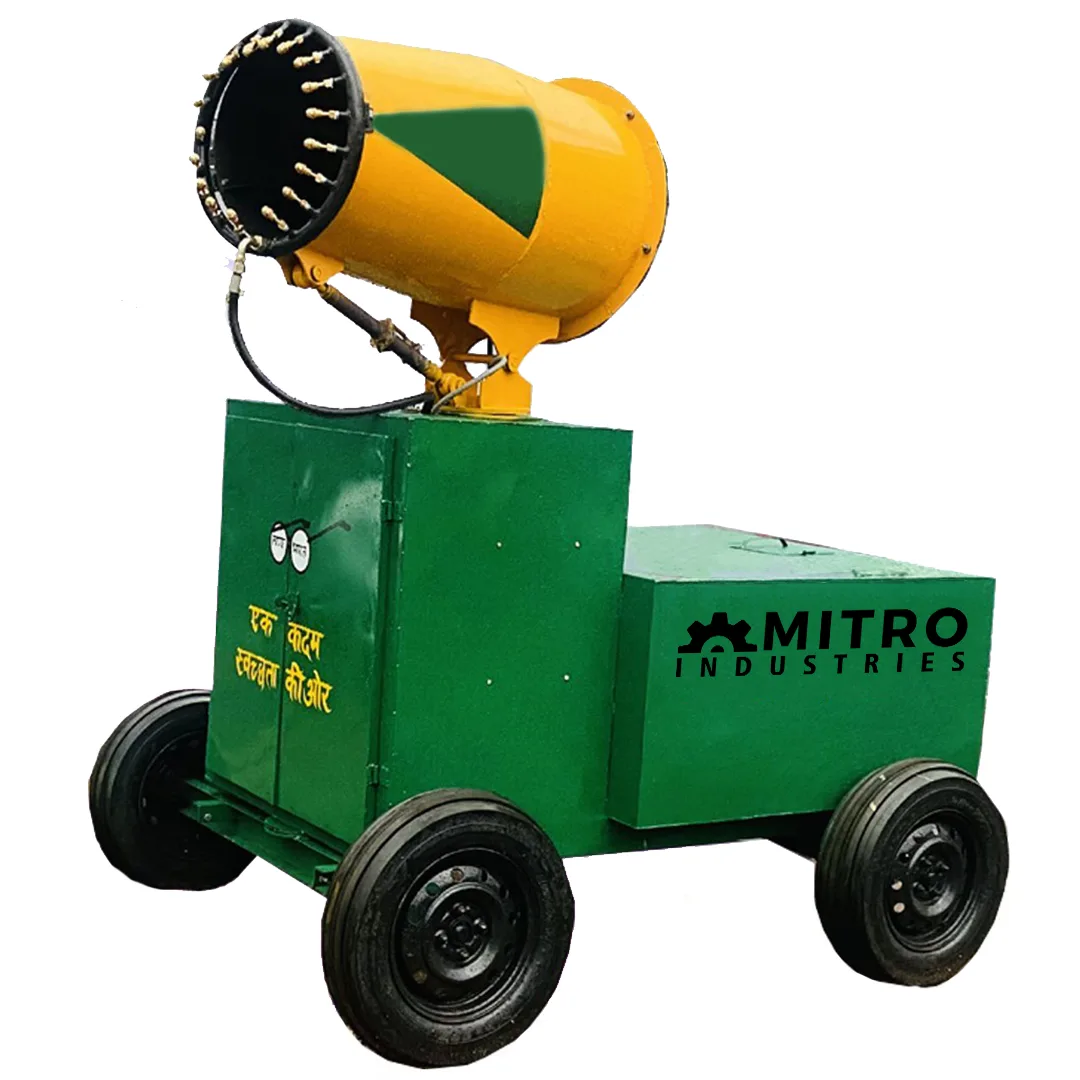

Our Dust Suppression System with Anti-Smog Gun is an advanced solution designed to effectively control airborne dust and reduce pollution on construction sites. Built with cutting-edge technology, this system utilizes a powerful anti-smog gun to disperse fine water mist or atomized droplets, which quickly capture and suppress dust particles, preventing them from spreading into the air.
Ideal for construction sites, demolition zones, and industrial workspaces, this dust suppression system helps ensure a safer, cleaner environment for workers and surrounding communities by significantly reducing harmful particulate matter. The Anti-Smog Gun is capable of covering large areas efficiently, offering both high-performance and versatility for various site conditions.
Usage & Application
1. MUNICIPALITIES, TOWNSHIPS AND DISTRICTS
Dust control is for those responsible for road maintenance in municipalities, townships and districts. It can be local roads, parking lots, bicycle lanes, trails, roads in game reserves, road shoulders, sand dunes, etc.
2. FORESTRY
Dust suppression is important for sensitive forestry roads. Improving both visibility and drivability on roads and protecting vegetation from dust.
Specification
| Sr. No. | Particular | MI-ASG01 | MI-ASG02 |
| 1 | Usage | Control Air Pollution | Control Air Pollution |
| 2 | Moving | Manual | Manual |
| 3 | Mounted | UCP Bearing for Heavy Structure | UCP Bearing for Heavy Structure |
| 4 | Fan Diameter | 24 inches | 28 inches |
| 5 | Water Pump Motor | 2 Hp | 3 Hp |
| 6 | Fan Motor | 5 Hp | 10 Hp |
| 7 | No. of Spray Nozzles | 18 Nos | 26 Nos |
| 8 | No. of Fan Blades | 8-10 Nos | 8-10 Nos |
| 9 | Horizontal Rotation | 340 Degree | 340 Degree |
| 10 | Vertical Rotation | 75-80 Degree | 75-80 Degree |
| 11 | Blower Capacity | 3000 m3/hr | 3000 m3/hr |
| 12 | Auto Rotate | If Required | If Required |
| 13 | Pump Warranty | 1 Year | 1 Year |
| 14 | Volume Flow | 25-30 Ltr/Min | 25-30 Ltr/Min |
| 15 | Water Tank | 1000 Ltr | 1000 Ltr |
| 16 | Frame Angle | 50*5 mm | 50*5 mm |
| 17 | Frame Sheet | 14 Gauge | 14 Gauge |
| 18 | Drum Sheet | 2-2.5 mm | 2-2.5 mm |
| 19 | Elevation Angle | 10 degree - 60 degree | 10 degree - 60 degree |
| 20 | Blower RPM | 2800 | 2800 |
| 21 | Protection Level | 65 IP | 65 IP |
| 22 | Isolation Valves | Ball & Globe Valve | Ball & Globe Valve |
| 23 | Pump Location | Under Fog | Under Fog |
| 24 | Pump Specification | 2.5 m3 - 8 bar | 2.5 m3 - 8 bar |
| 25 | Water Storage Tank | In-Build (Trolley) | In-Build (Trolley) |
| 26 | Material | MS Steel | MS Steel |
| 27 | Spray Water Ring | Single Rings | Single Rings |
| 28 | Material Of Water Ring | SS 304 | SS 304 |
| 29 | Power Supply | 415 Volts (3 Phase) | 415 Volts (3 Phase) |
| 30 | Equipment Type | Portable | Portable |
| 31 | Operational System | Control Panel | Control Panel |
| 32 | Movable Tire | As per requirement | As per requirement |
| 33 | Nozzle Specification | Hollow Cone 2-3 LPM | Hollow Cone 2-3 LPM |
| 34 | Particle Size | 20-150 Micron | 20-150 Micron |
| 35 | Nozzle Material | Brass | Brass |
| 36 | Hose | Synthetic Rubber | Synthetic Rubber |
Features
Effective Dust Control - Rapidly captures and suppresses dust particles, reducing airborne pollutants that can affect air quality and health.
Advanced Anti-Smog Gun - High-powered mist dispersal technology that ensures widespread coverage, efficiently suppressing dust across large areas.
Environmentally Friendly - Uses fine misting technology with minimal water consumption, reducing water waste while still providing optimal dust control.
Energy Efficient - Low energy consumption, designed to operate economically without sacrificing performance.
Adjustable Settings - Customizable spray settings to target specific areas, ensuring precise control based on site conditions and dust levels.
Easy to Use - Simple setup and operation, making it a user-friendly solution for construction and industrial sites.
Durable Construction - Built to withstand tough environments, with high-quality components designed for long-term, reliable performance.
Benefits
Improved Air Quality - Reduces harmful dust pollution, leading to healthier working conditions and less environmental impact.
Enhanced Safety - Reduces slip hazards and respiratory risks associated with dust inhalation.
Compliance with Regulations - Meets environmental and safety standards, helping construction sites stay compliant with local air quality regulations.
Ideal for large-scale construction projects, roadworks, and mining operations, our Dust Suppression System with Anti-Smog Gun offers a reliable, eco-friendly solution to tackle dust pollution and create a safer working environment.
