Allen Key Bolt Coupler

L N Key Parallel bolt couplers provide a full strength joint between a reinforcing steel bar (rebar) and a standard bolt or all-thread bar. View Complete Details...

Get Best Price

Construction Rebar Coupler

GET QUOTE

REQUEST A CALL BACK

Product Specification

L N Key Parallel bolt couplers provide a full strength joint between a reinforcing steel bar (rebar) and a standard bolt or all-thread bar. The coupler may be used for load-carrying steel structures bolted to concrete foundations, columns or walls.

The Mitro L N Key bolt coupler is a mechanical connector for 10 to 40mm diameter reinforcing-steel Bar. The positive transfer of tension and pressure forces from one rebar to the other is achieved via a self-regulating impacting-lock in the coupler.

No preparatory rebar work required

• No thread cutting

• No ramming

• No crimping

• No welding

Mitro L N Key Bolt couplers Reinforcing provide a method of joining reinforcing bars without the need of bar end preparation such as threading. Bars are locked in place by two serrated saddles and a series of special lockshear bolts, the heads of which shear off when the predetermined tightening torque is reached, providing a visual check of correct installation. Typically used for column splicing, bridge applications, piling, beams and closure pours, Mitro L N Key Bolt couplers are available in sizes to suit 10mm, 12mm, 16mm, 20mm, 25mm, 28mm, 32mm, 36mm and 40mm bar sizes.

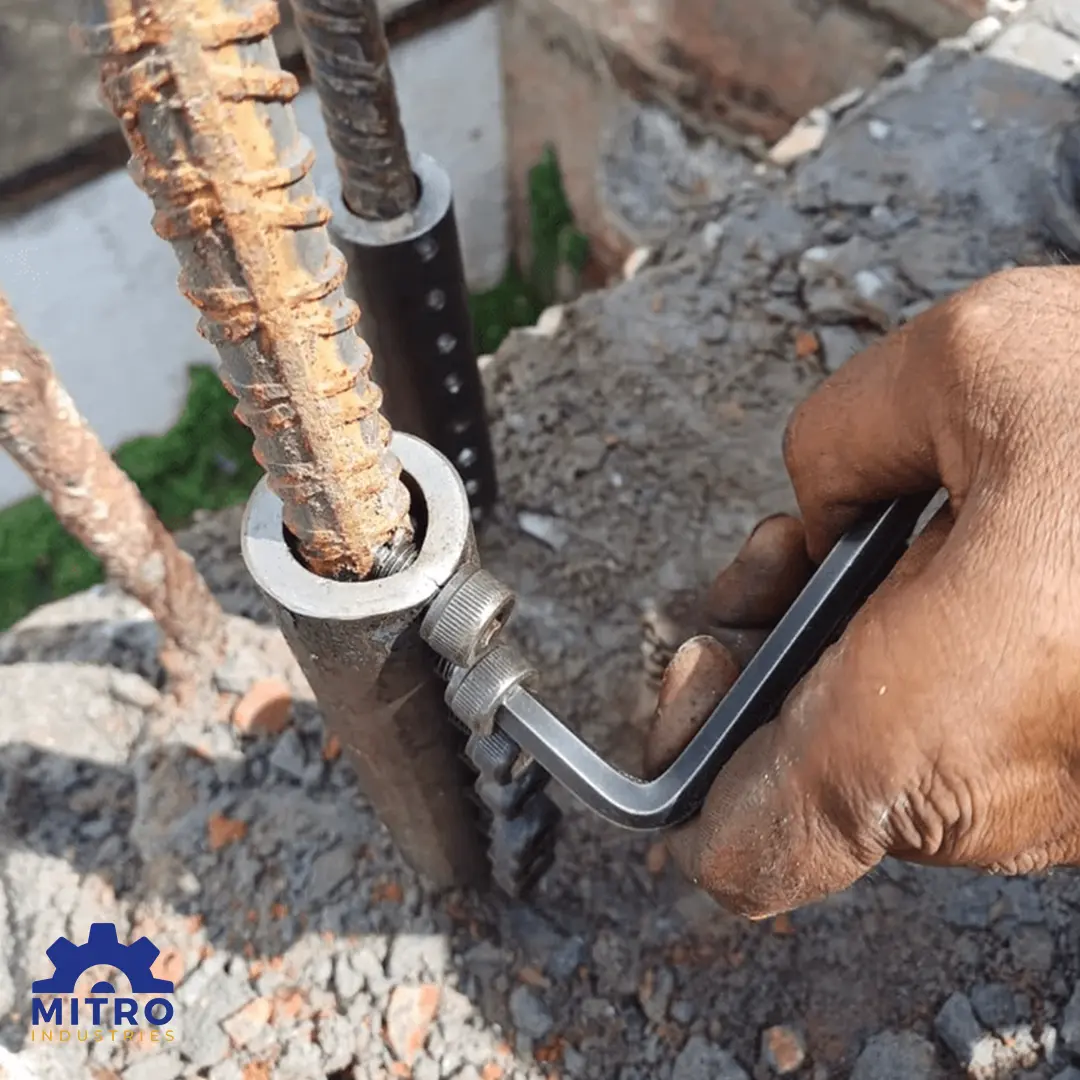

Installation

Standard use tools are sufficient for installation. However, for efficient and easy installation, special power or electric screwdrivers can be used. You can purchase L N Key Panna tools from Local Hardware.

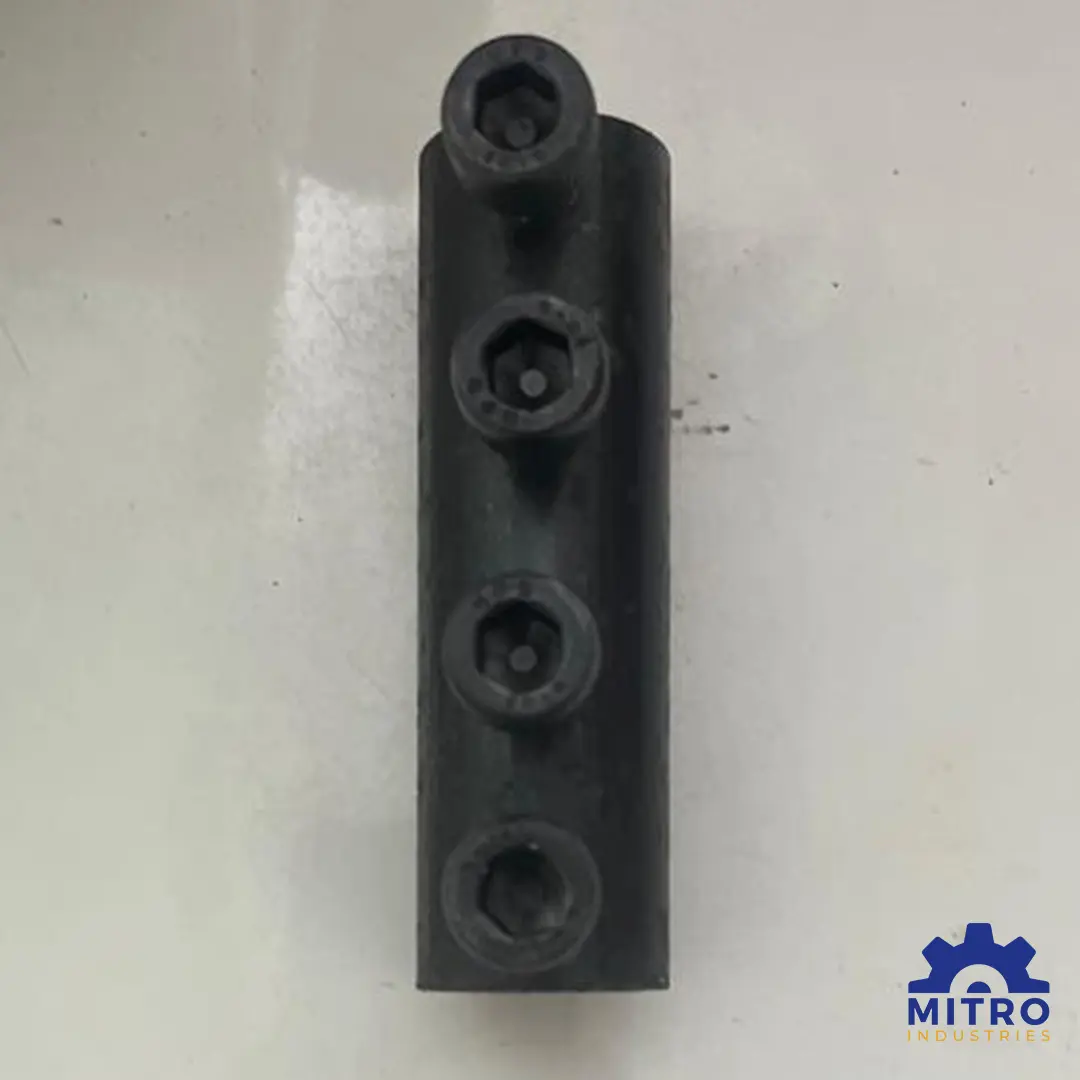

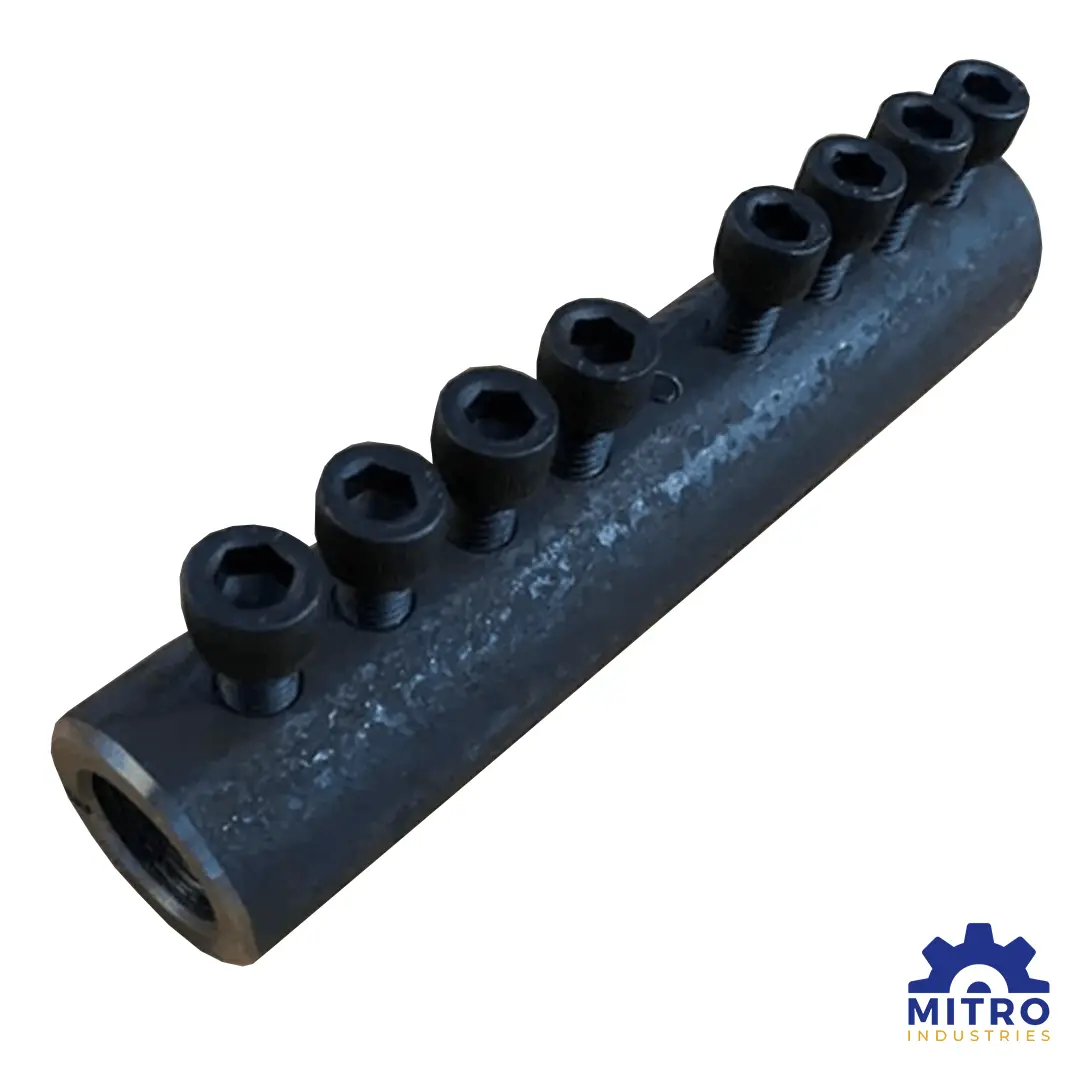

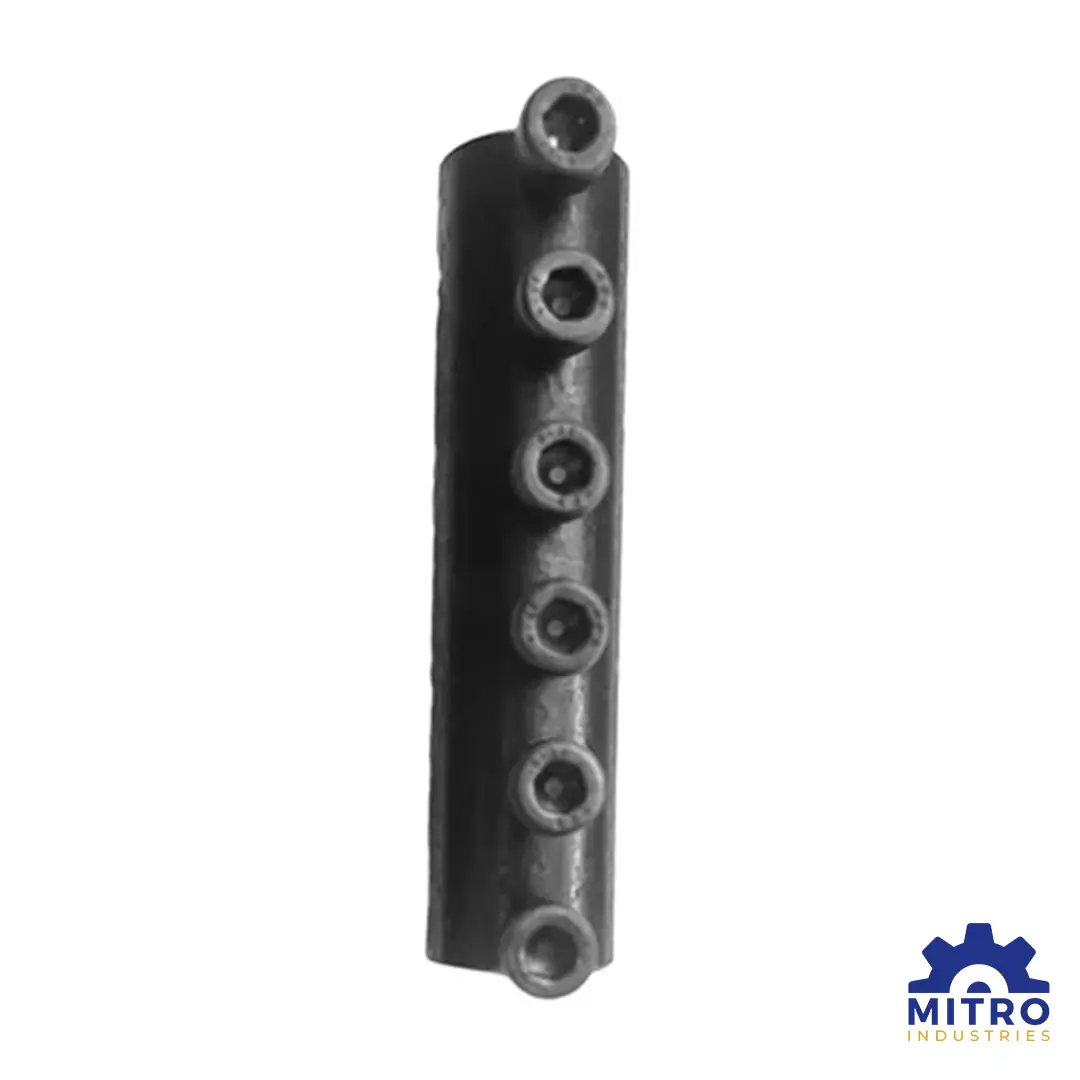

The standard coupler consists of a seamless tube with integrated serrated runners and a set number of shear-off screws. The number of screws depends on the diameter of the rebar.

Benefits of L N Key Bolt Coupler

• No preparatory work needed on the rebar ends

• Using shear-off screws means fast and safe installation

• Efficient and cost-effective installation using standard tools and with low screw shear-off moments

Features of L N Key Bolt Coupler

• Mechanically bolted coupler that doesn’t require bar end preparation or rotation.

• Can be used in Applications where traditionally couplers do not work.
